Application
Electrical switches are ubiquitous in the modern world. They come in a variety of sizes, speed, reliability, and power ranges that cover orders of magnitude of differences. Recent advances in MEMs technology have brought about a switch platform that breaks existing tradeoff space constraints around size, R-on, and speed.
This new technology promises to supplant many of the existing switch solutions. For example, these novel MEMs devices can replace electromagnetic relays and improve performance, size, and weight by 99%–and even with improved reliability.
CSS partnered with this innovative MEMs company to provide an ASIC that supplies the high-voltage drive signals needed to control the switch.
At a glance
Charge pump5V → 100V
Outputs8 ch, 100V
Interface25MHz SPI
MarketIndustrial

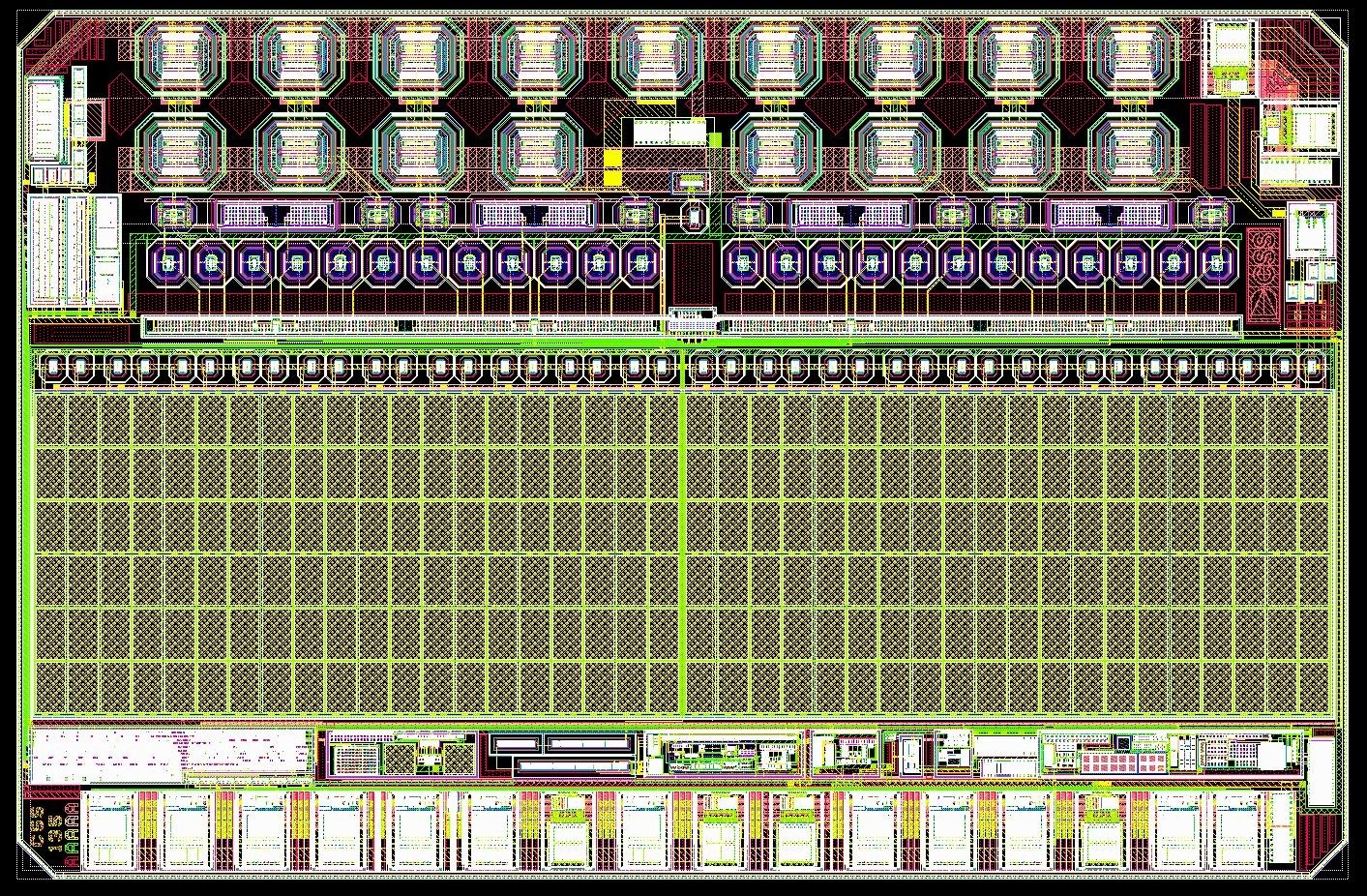

Custom solution from CSS
This ASIC implements a charge pump that creates a 100V output from a low voltage input. It also integrates an adjustable high-voltage regulator with outputs from 70-100V.
Finally, low-voltage digital & analog circuitry manage communications and housekeeping functions.
Key features
- DongBu HiTek 180nm High-Voltage CMOS
- Charge pump from 5V to 100V
- 8-channel, 100V Output Driver
- Adjustable High-Voltage Regulator (70V to 100V)
- Brownout Detector
- SPI Communications Bus
- 25MHz SPI Serial Interface
- I/O Levels can range from +1.8V to 5.25V
